Why it matters
Once the base and turf are installed, finding a buried line or forgotten valve may require cutting the finished surface. A small set of measured photographs can save hours of uncertainty and protect both the turf and surrounding property during future repairs or improvements.
How it is used
Before excavation, the contractor and owner identify known services and arrange required utility locating. During construction, retained, removed, capped, redirected, or sleeved features are photographed with reference measurements. Accessible boxes and cleanouts are brought cleanly to finished grade, and the final record explains what remains beneath the surface.
What good verification looks like
Performance checks worth asking about
Pre-excavation feature inventory
A walkthrough can identify visible valves, meters, drains, cleanouts, lighting, irrigation zones, tree roots, access constraints, and owner-known private improvements that need protection or a decision.
Ask for: Ask for the feature inventory to appear in the work scope, including responsibility for locating private lines that ordinary utility marking may not cover.
Keep in mind: Visible evidence and owner memory cannot guarantee that every abandoned, unmarked, undocumented, or privately installed feature will be discovered.

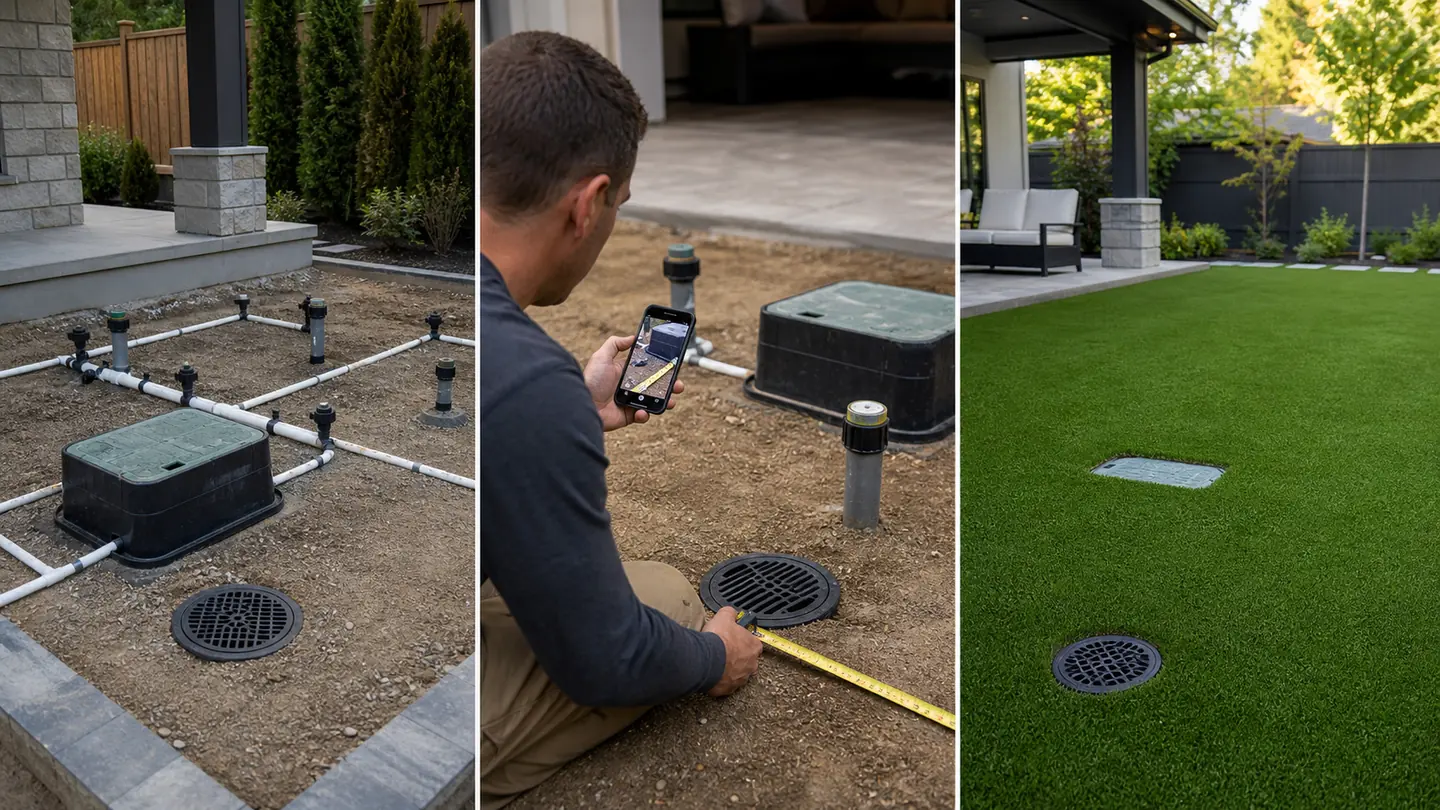

Measured concealed-work photographs
Wide and close views with measurements from permanent corners or hardscape can preserve the route, depth, connection, and approximate location of concealed site elements.
Ask for: Ask for organized photographs labeled by area and feature, with at least two useful reference measurements where later location matters.
Keep in mind: Photographs are a location aid, not clearance to excavate. Future work may still require utility locating, safe digging practices, permits, or qualified trades.
Access and operation check
Operating retained irrigation and inspecting covers can confirm that intended systems still function and that valves, drains, cleanouts, and service points remain reachable at finished grade.
Ask for: Ask the contractor to identify every retained access point and demonstrate relevant systems before signing the final completion record.
Keep in mind: A short operational check cannot predict future leaks, root movement, freeze damage, equipment failure, or conditions beyond the turf contractor's scope.
The money question
How can it affect project cost?
Basic documentation is inexpensive compared with later exploratory work. Relocating valves, adding sleeves, raising boxes, repairing irrigation, coordinating utility locating, or protecting major roots can add labor and materials but reduces future access risk.
Common mistakes
- Assuming public utility locating identifies every private irrigation or electrical line
- Burying valve boxes or cleanouts without accessible finished covers
- Taking close-up photographs with no fixed reference point or measurement
- Leaving disconnected irrigation branches pressurized or undocumented
Questions to ask an installer or supplier
- Which public and private utilities will be located before excavation?
- What will be retained, capped, removed, rerouted, sleeved, or kept accessible?
- How will photographs be tied to fixed property features so buried items can be found later?
- Which irrigation or utility work requires a separately qualified or licensed trade?
Sources and review
- Synthetic Turf Council: Guidelines for Essential Elements of Synthetic Turf Systems
- Synthetic Turf Council: Glossary of Synthetic Turf Terms
Editorially reviewed July 20, 2026. General educational guidance; verify product claims and site conditions for your project.
